Automated High-Throughput System Developed to Generate Structural Materials Databases

High-precision experimental data is essential for investigating material mechanisms, formulating theories, constructing models, performing numerical simulations and machine learning and driving materials innovation. In particular, large quantities of accurate Process–Structure–Property datasets are indispensable for optimizing heat-resistant superalloy processing methods and the complex, multi-element microstructures of these materials. However, developing such databases typically requires years of continuous experimental work and substantial resource investment. These challenges have long hindered the development of high-performance superalloys.

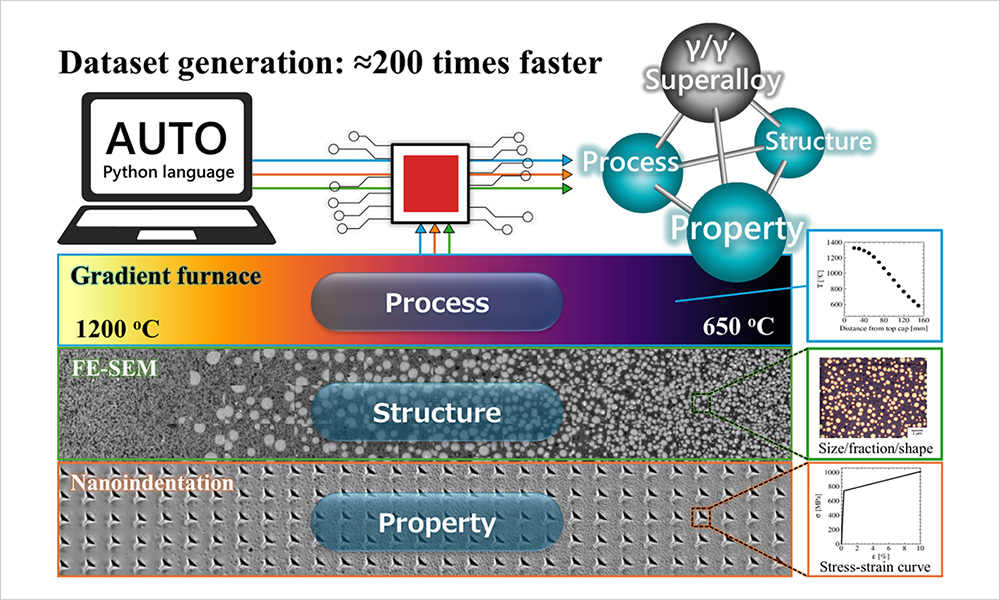

This NIMS research team recently developed a new, automated high-throughput evaluation system capable of generating Process–Structure–Property datasets containing thousands of data points from a single sample of a Ni-Co-based superalloy developed by NIMS for use in aircraft engine turbine disks. These datasets include processing conditions (heat treatment temperatures), microstructural information (e.g. precipitate parameters) and mechanical properties (e.g. yield stress). The superalloy sample was thermally treated using a gradient temperature furnace developed by the team, thus mapping a wide range processing temperatures across it. Precipitate and yield stress measurements were obtained at various coordinates along the temperature gradient using a scanning electron microscope automatically controlled using a Python API and a nanoindenter. The system then rapidly evaluated and processed the collected data. As a result, the system successfully generated a volume of Process–Structure–Property data that would have taken conventional methods approximately seven years and three months to produce in just 13 days.

The research team plans to apply this system to the construction of databases for various target superalloys and to the development of new technologies for acquiring high-temperature yield stress and creep data. In addition, the team aims to formulate multi-component phase diagrams—essential for materials design—based on the constructed superalloy databases, and to explore new superalloys with desirable properties using data-driven techniques. The ultimate goal is to fabricate new heat-resistant superalloys that may contribute to achieving carbon neutrality.

• This project was carried out by a research team consisting of Thomas Hoefler (Postdoctoral Researcher, High-Reliability Heat-Resistant Materials Group (HRHRMG), Research Center for Structural Materials (RCSM), NIMS), Ayako Ikeda (Researcher, High Temperature Materials Group (HTMG), RCSM, NIMS), Toshio Osada (Group Leader, HRHRMG, RCSM, NIMS), Toru Hara (Managing Researcher, Microstructure Analysis Group, RCSM, NIMS), Kyoko Kawagishi (Group Leader, HTMG, RCSM, NIMS), and Takahito Ohmura (Director, RCSM, NIMS).
  This work was conducted as part of another project entitled “Comprehensive and efficient exploration of high-temperature structural materials using multi-component compositionally graded bulk materials” (project leader: Takahito Ohmura) supported by the National Security Technology Research Promotion Fund of the Acquisition, Technology & Logistics Agency (grant number: JPJ004596).
• This research was published in Materials & Design, an open access international scientific journal, on June 20, 2025.
