[Vol. 30] Topological Photonic Crystal Made of Silicon

Jan. 19, 2017

WPI-MANA researchers derive topological photonic states purely based on silicon, which can lead to the development of new functions and devices through integration with semiconductor electronics

Graphic images Vol.30

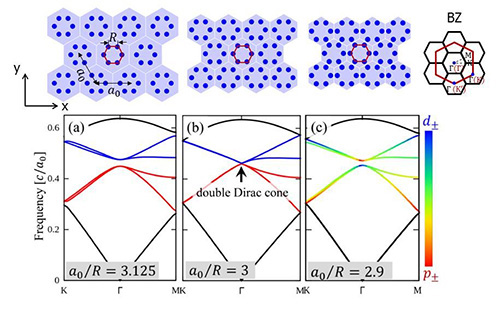

Figure: (Top) Schematic of photonic crystals consisting of nanorods derived from the honeycomb lattice viewed from above, and (bottom) the corresponding photonic bands. Photonic crystals are obtained by dividing the nearest neighboring nanorods into hexagonal clusters, and widening (a) or narrowing (c) the separation between the hexagonal clusters from the original honeycomb lattice (b), while maintaining the same shape and size of the hexagons. In (c), a band inversion occurs between the photonic p- and d-bands, which generates topological features in the system.

Topology is a mathematical concept which describes the way of connection of an object invariant under continuous deformation. Recently, it has been pointed out that topology can also be defined in the electronic states of materials, and this provides a unified and useful picture for physicists describing the unique properties of materials.

Based on a new approach which they have dubbed “topological nanoarchitectonics,” Xiao Hu and Long-Hua Wu, who are theoreticians at the International Center for Materials Nanoarchitectonics (MANA), National Institute for Materials Science (NIMS), elucidated a new principle which makes electromagnetic waves including light propagate on the edge in a two-dimensional photonic crystal without being scattered.

It was known that scattering of light by defects in conventional photonic crystals can be suppressed in topological photonic states, but so far special materials were required in order to create topological photonic crystals. However, the MANA researchers discovered a new principle which makes it possible to realize a topological photonic crystal by merely adjusting the positions of insulator or semiconductor nanorods in a honeycomb lattice, without using any special material or complicated structure. When hexagonal clusters are formed by adjusting the positions of nanorods, electromagnetic modes carrying spin, which is conventionally specific to electrons, appear. As a result, the MANA researchers theoretically clarified that a photonic crystal exhibits topological properties when the separation between hexagonal clusters is narrowed from that of the honeycomb lattice.

Since this new property of a photonic crystal can be obtained even by semiconductor such as silicon and/or GaN alone, various new functions are expected by integration of information processing functions achieved by the well-established semiconductor electronics and the excellent topological property of electromagnetic waves.

Reference

Journal Phys. Rev. Lett. 114 (2015) 223901.
Title Scheme for Achieving a Topological Photonic Crystal by Using Dielectric Material
Authors Long-Hua Wu and Xiao Hu
Affiliations International Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science (NIMS), Namiki 1-1, Tsukuba, Ibaraki 305-0044, Japan
DOI 10.1103/PhysRevLett.114.223901
