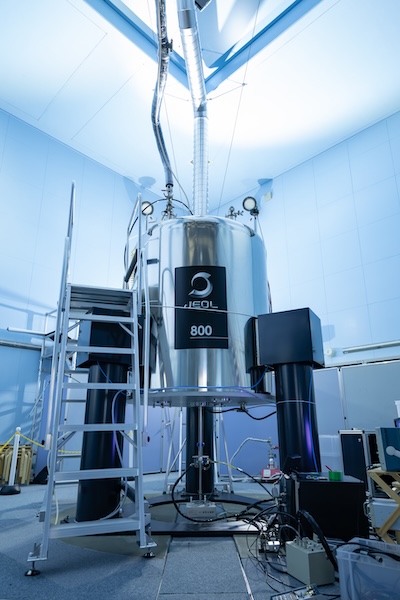

800 MHz Wide Bore Solid-State High-Resolution NMR System

Shared Equipment Details

Equipment Images

Summary

• Magnetic field: 18.79 T (fixed) (equivalent to 800 MHz ¹H)
• Bore diameter: 89 mm (at room temperature)
• Continuous operation in permanent current mode
• Magnetic field stability: below10 Hz/hr
• Probes: HX (1 mmφ/70 kHz, 2 mmφ/40 kHz, 3.2 mmφ/22 kHz)
• Measurement specifications: CP/MAS, MQMAS, low-γ single, etc.
• Measurable nuclides: ¹H,¹³C, ²⁷Al, ⁷Li,¹⁹F and Low-γ nuclides (²⁵Mg, ⁹⁵Mo, ³⁵Cl, ¹³³Cs ,¹⁹⁷Au,etc.)

Key Specifications

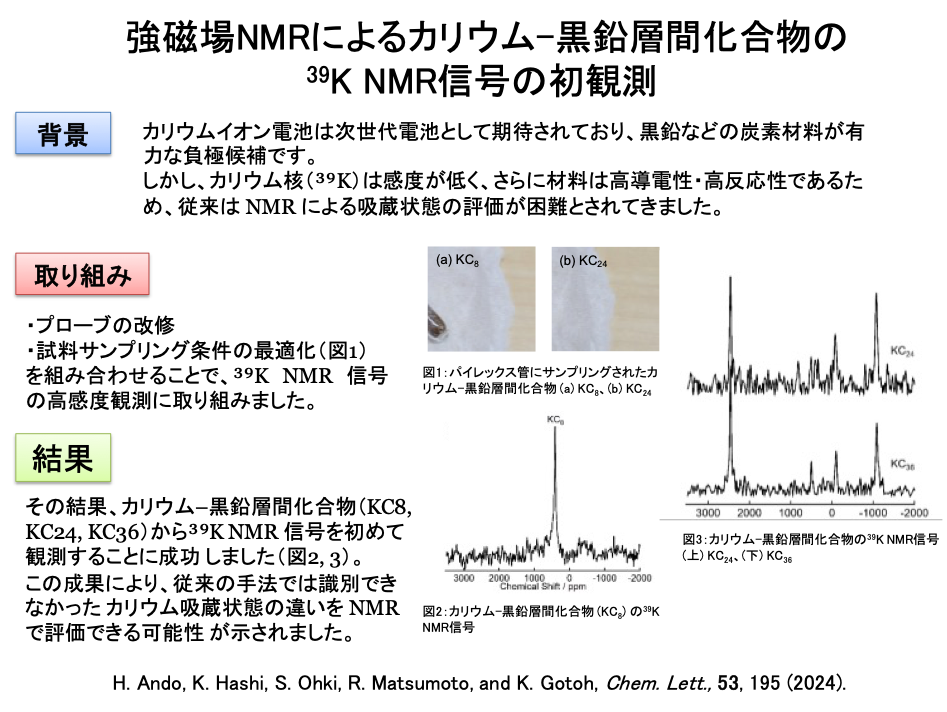

Support Examples
