500 MHz Solid-State General-Purpose NMR System

Shared Equipment Details

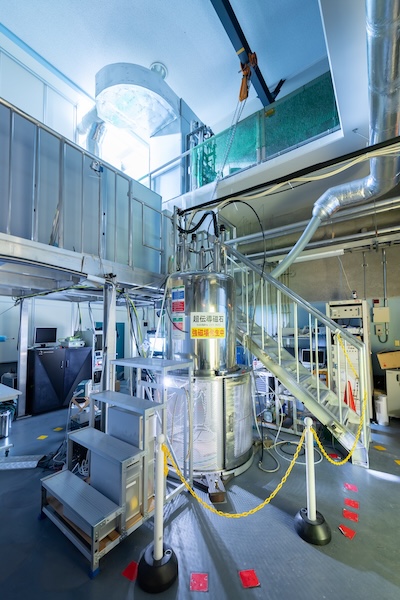

Equipment Images

Summary

• Magnetic Field: 11.75 T (fixed) (equivalent to 500MHz ¹H)
• Bore Diameter: 89 mm (at room temperature)
• Permanent current mode for continuous operation
• Magnetic Field Uniformity: 2.6×10⁻⁶/20 mm DSV
• Probe: HX (3.2 mm φ/22 kHz, 4 mm φ/15 kHz)
  　　　　HX (4 mm φ/15 kHz with a low-γ kit, Phoenix)
  　　　　HXY (4 mm φ/15 kHz)
  　　　　Static (home-built with a helium gas-flow cryostat)Measurement specifications: CP/MAS,
  　　　　static (broad line at cryotemperatures), low-γ single, etc.
• Measured nuclides: ¹H,¹³C, ⁷Li, ²⁹Si, ³¹P, low-γ nuclei, etc.
