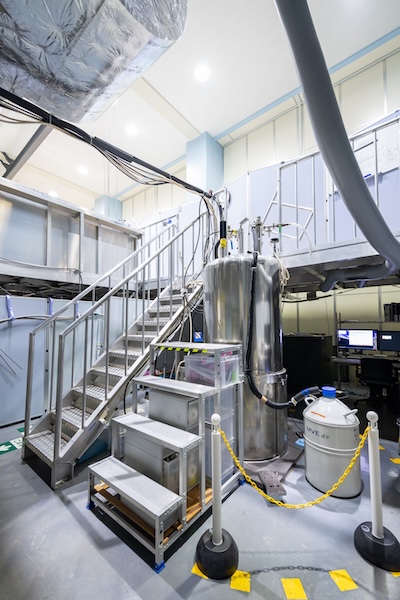

500 MHz Solid-State High-Resolution NMR System

Shared Equipment Details

Equipment Images

Summary

• Magnetic Field: 11.75 T (fixed) (equivalent to 500MHz ¹H)
• Bore Diameter: 89 mm (at room temperature)
• Continuous operation in permanent current mode
• Magnetic Field Uniformity: 2.6×10⁻⁶/20 mm DSV
• Variable sample temperature (-150 ℃ to +250 ℃)
• Probe: HX (3.2 mmφ/22 kHz, 4 mmφ/15 kHz)
  　　　　HX (4 mmφ/15 kHz with a Low-γ kit, Phoenix)
  　　　　HXY (4 mmφ/15 kHz)
  　　　　Static (6 mmφ, with an optional goniometer, Doty)
• CP/MAS, MQMAS, Static (anisotropy)
• WebEX system remote operation
• Measurement specifications: CP/MAS, MQMAS, Low-γ single, etc.
• Measurable nuclides: ¹H,¹³C, ⁷Li, ²⁹Si, ³¹P, Low-γ nuclides, etc.

Key Specifications
