Transmission Electron Microscopes

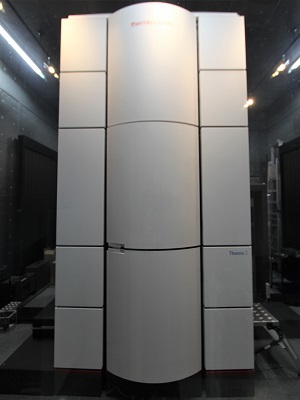

Monochromated corrected Microscope: ThemisZ (Thermo Fisher Scientific)
30 - 300kV, Schottky-gun, GIF, EDX (Dual-X)
Monochromator (ultimono mode), probe-corrector (S-CORR)
Please see the linked PDF file for details.
For inquiries, please contact the person in charge below.
Jun KIKKAWA (kikkawa.jun[@]nims.go.jp)
Koji KIMOTO (kimoto.koji[@]nims.go.jp)

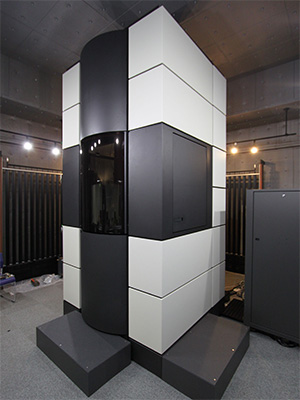

Double-corrected microscope: Titan -cubed (Thermo Fisher Scientific)
40 - 300 kV, Schottky-emission gun, Oxford EDS.
Probe corrector (DCOR) and image-corrector (CETCOR)
Please see the linked PDF file for details.
For inquiries, please contact the person in charge below.
Koji KIMOTO (kimoto.koji[@]nims.go.jp)
Ovidiu CRETU (cretu.ovidiu[@]nims.go.jp)
Koji HARANO (harano.koji[@]nims.go.jp)











Other devices

Focused Ion Beam: FB-2000 (Hitachi)
30kV, micro sampling device
Ion milling: Gatan PIPS
5kV, CCD camera, specimen cooling device
Low-voltage ion milling: Gentle Mill (Technoorg-Linda)
0.2kV ~ 2kV
Carbon Coater: VES-30T (Vacuum Device Inc.)
Desktop, TMP pump
...
and, other devices, such as mechanical grinding tools.
