Laser Assisted Wide Angle Three-dimensional Atom Probe
Three-dimensional Atom Probe assisted with femtosecond laser pulse. It can analyze wide variety of materials including metals, semiconductors and their devices, ceramics.
![](/mmu/facility/img/uev7qc000000i7ky.gif)
3DAP map of Dy-diffusion processed Nd-Fe-B sintered magnet(~30nmx30nmx100nm)
![](/mmu/facility/img/uev7qc000000i7l9.jpg)

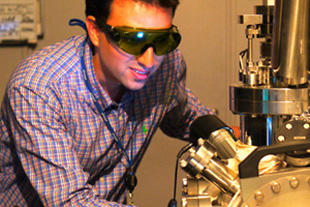

Inserting Sample
![](/mmu/facility/img/uev7qc0000006hl1.jpg)
Laser Wavelength Converter
(1030nm to 515nm, 343nm, 257nm)
(1030nm to 515nm, 343nm, 257nm)
![](/mmu/facility/img/uev7qc0000006hlc.jpg)
Stage Holder
