Chemical Wiring and Soldering of Single Molecules

-Toward All-Molecule Electronic Circuitry-

May 6, 2011

This research was conducted by
Yuji Okawa1, Swapan K. Mandal1, Chunping Hu1, Yoshitaka Tateyama1, 2, Stefan Goedecker3, Shigeru Tsukamoto1, 4, Tsuyoshi Hasegawa1, James K. Gimzewski1, 5 and Masakazu Aono1

1MANA, NIMS, 2PRESTO and CREST, JST, 3University of Basel, 4Forschungszentrum Jülich, 5UCLA

A novel method, “chemical soldering”, for connecting single conductive polymer nanowires to single functional molecules has been successfully developed. This is a key step in advancing the development of all-molecule electronic circuit, in which each molecule performs the basic functions of electronics.

fig. 1

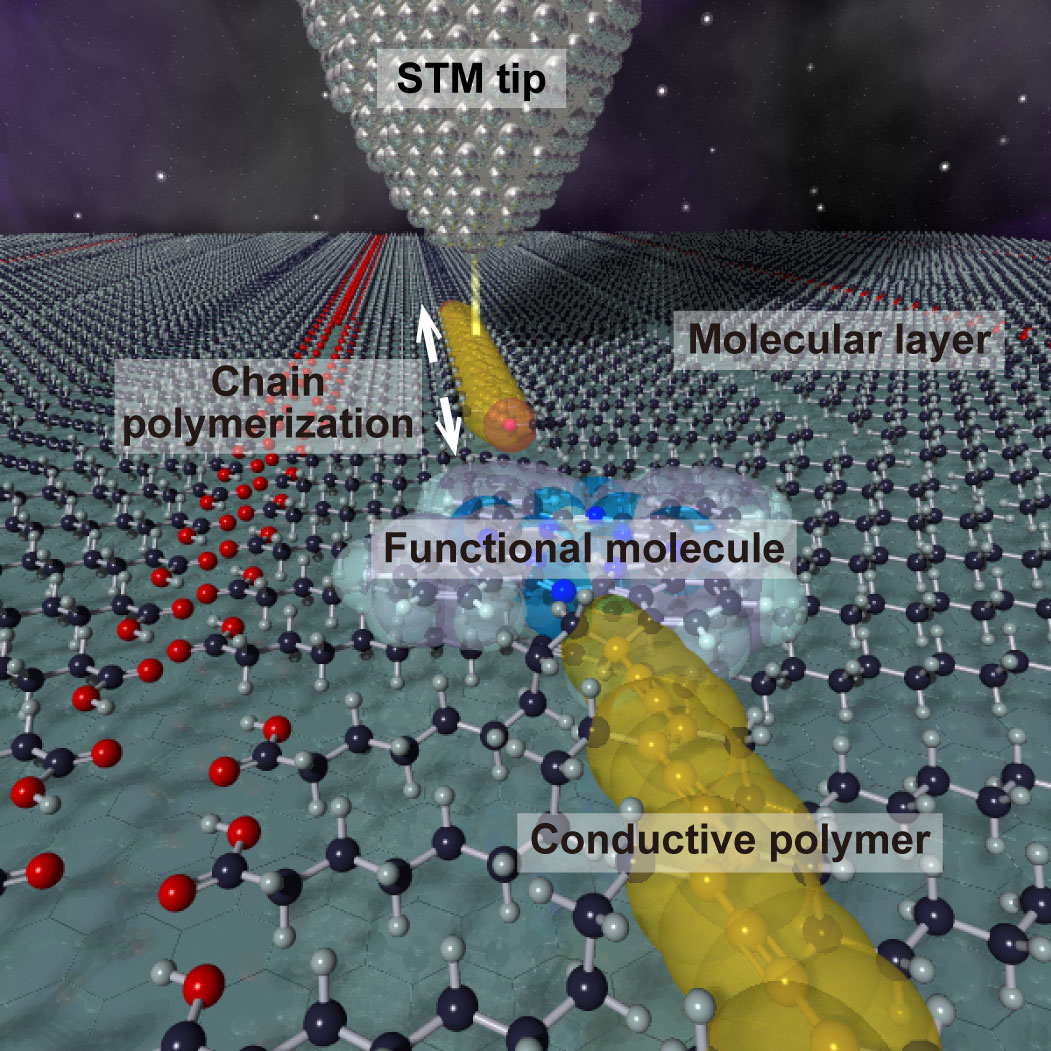

Figure 1 : Schematic image showing chemical soldering. A relevant functional molecule is placed on a molecular layer of diacetylene compound. A probe tip of scanning tunneling microscope (STM) is used to initiate chain polymerization, which form a conductive polymer nanowire. Since the front edge of chain polymerization necessarily has a reactive chemical species, the created polymer nanowire spontaneously forms chemical bonding with an encountered molecular element.

fig. 1

Figure 2 : Series of STM images demonstrating the chemical soldering to a single functional phthalocyanine molecule. The left image shows phthalocyanine molecules adsorbed on a molecular layer. Chain polymerizations were then initiated to connect one (center image) and two (right image) conductive polymers to a single phthalocyanine molecule. The created polymers are observed as bright lines in the images.
