Ultrasonic fatigue testing machine

Ultrasonic fatigue testing machine
Features and Main Specifications
　・A 109 cycles fatigue test is completed in a day.
　・Test frequency: 20 kHz
Model：USF2000
Contact：Yoshiyuki Furuya　FURUYA.Yoshiyuki=nims.go.jp (Please change "=" to "@")

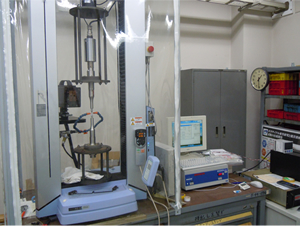

Ultrasonic fatigue testing machine

Several ultrasonic fatigue testing machines “Shimadzu USF2000” are working now. The features are below.

Mean stress loading device
　→ Stress ratios are variable
Specimens and horns are originally designed
　→ Applicable to various materials and test conditions
High temperature ultrasonic fatigue testing is also available
　→ This technology is originally developed

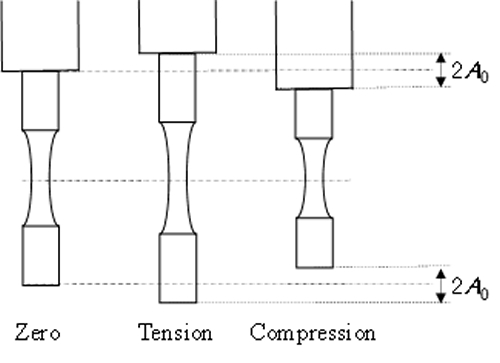

Principle of the ultrasonic fatigue testing

By using resonance, strong vibrations take place in specimens, which cause fatigue failure. This method is far different from conventional fatigue testing that uses physical force, meaning that expertise is necessary to use this method appropriately. We have used this method for over 20 years, accumulating the expertise and data.

Applications: Very high cycle or gigacycle fatigue tests on high-strength metallic materials
