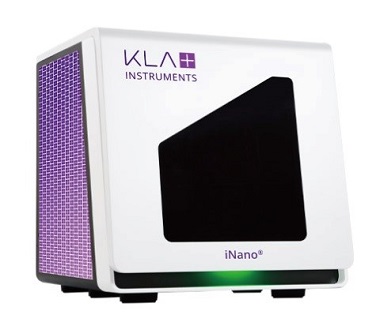

B9：NanoindenterNanoGREEN Bldg.E-206-1
|
Maker |
TOYO Corporation |
|---|---|
|
Model |
INANO |
|
Use for |
Mechanical characterization (hardness, Young’s modulus, dynamic viscoelasticity) of battery samples, including composite electrode cross-sections. |
|
Outline |
A system for quantitative evaluation of mechanical properties by indentation and displacement measurement. |
Specification
|
Loading Method |
Electromagnetic Coil |
|---|---|
|
Displacement Measurement |
Capacitance Gauge |
|
Max Indentation Depth |
>20μm |
|
Max Indentation Load |
50mN |
|
Load Resolution |
3nN |
|
Displacement Resolution |
0.02nm |
|
Measurement Position Confirmation |
CCD camera |
Notice
- Inside a glovebox (Ar/H₂ 5%)
- Please consider collaborative research with NIMS researchers because the precise and complicated operation is necessary.
