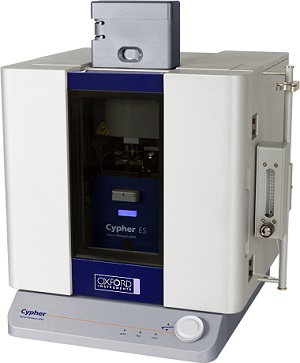

B10：Bimodal AFMNanoGREEN Bldg.E-206-1
|
Maker |
Asylum Research/Oxford Instruments |
|---|---|
|
Model |
CYPHER-ES-HV |
|
Use for |
Concurrent characterization of nanoscale structure, surface roughness, mechanical, and electrical properties of battery samples, including composite electrode cross-sections. |
|
Outline |
A scanning probe microscope for nanoscale analysis under <1 ppm H₂O/O₂, measuring nanostructure, surface potential, and mechanical properties of air-sensitive secondary battery materials. |
Specification
|
Excitation Mode |
Piezo and blueDrive |
|---|---|
|
Measurement Range |
XY 30 µm × 30 µm, Z 5 µm |
|
Max sample size |
φ15mm×6mm |
Notice
- Inside a glovebox (Ar/H₂ 5%)
- Please consider collaborative research with NIMS researchers because the precise and complicated operation is necessary.
