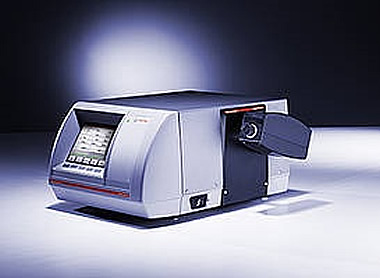

A8：ViscometerNanoGREEN Bldg. E-501
|
Maker |
AntonPaar |
|---|---|
|
Model |
Lovis2000ME |
|
Use for |
Combined measurement of density, dynamic viscosity and kinematic viscosity of liquids. |
|
Outline |
Lovis 2000 M/ME is a rolling-ball viscometer which measures the rolling time of a ball through transparent and opaque liquids according to Höppler's principle. Sample volume is 0.1 mL to 0.8 mL. Measurable dynamic viscosity is up to 10,000 mPa·s with heating from 5 to 100℃. Test duration is a minimum of 30 seconds for 1 measurement. |
Specification
|
Dynamic viscosity |
0.3～10,000mPa.s |
|---|---|
|
Temperature |
+5℃ to 100℃ |
|
Test duration |
minimal 30s, typical 3min |
|
Sample volume |
0.1 to 0.8ml |
|
Inclination |
15°to 80° in 1° steps |
|
Shear rate |
0.5～1000s-1（influenced by capillary size and inclination） |
Noticen
- This equipment is installed in the dry room.
- Not allowed to measure samples which contain corrosive liquid for glass apparatus, stainless steel balls and gold balls.
