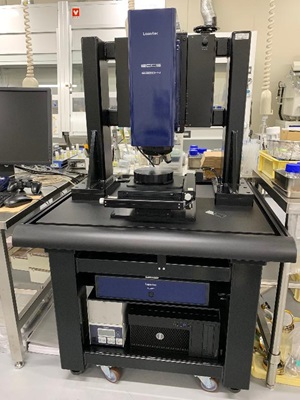

A49：Electro-Chemical Reaction Visualizing Confocal SystemNanoGREEN Bldg. E-501

Maker	Lasertec
Model	ECCS B320-N
Use for	Visualization of lithium-ion intercalation Quantification of expansion and contraction of active material Analysis of the mechanism of dendrite formation
Outline	It is possible to optically observe and visualize the electrode reactions of a battery in situ during charging and discharging.

Magnification	x5, x10, x20, x50, x100
Running Speed	11-speed variable function
Frame Memory	For video：1024(2048)Hｘ1024(2048)Ｖｘ8bitｘ3(Monochrome 12bit) For surface measurements:1024(2048)Hｘ1024(2048)Ｖｘ16bit
Scanning Speed	7 stages (15/2,15/4,15/8,15/1,15/32,16/64,12/128)
Microscale dimension measurement function	The minimum measurement unit:0.001μm Measurement reproducibility:0.01μm(3σ)
Surface topology measurement function	The minimum measurement unit:0.001μm Measurement reproducibility:0.01μm(3σ)
