A26:TEM/STEMNanoGREEN Bldg. E-105

A26:TEM/STEM

Maker

JEOL

Model

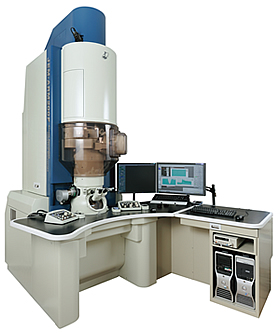

JEM-ARM200F(HR)

Use for

TEM/STEM observation, EELS analysis, EDX analysis

Outline

The JEM-ARM200F, with a STEM Cs corrector incorporated as standard, and the mechanical and electrical stability enhanced to the utmost limit, achieves an unprecedented STEM-HAADF resolution of 78 pm at 200 ㎸. The cold FEG enables high energy resolution EELS analysis.

Specification

Electron source

Gun type

Schottky type-Cold Field Emission gun

Accelerating voltage

60,80,200kV

Resolution

Dark Field mode

78pm (at 200kV, with cold FEG)

TEM(point resolution)

190pm (at 200kV )110pm (at 200kv, with TEM Cs-corrector)

Magnification

STEM

x200 to x150,000,000

TEM

x50 to x2,000,000

Other

Cs-corrector

Built-in as standard

Detectors

・EDS
・EELS

Specimen Holder

The unexposuring sample tilting holder to ambient air is available.
The unexposuring to ambient air and cryo sample holder is available(tilting holder)

Notice

  • As this is an ultra-high vacuum instrument, samples containing volatile components that may contaminate the chamber cannot, in principle, be measured. Please consult us in advance regarding such samples. Samples containing sulfides cannot be measured.
