A21:XRD_2 OperandRoom 503

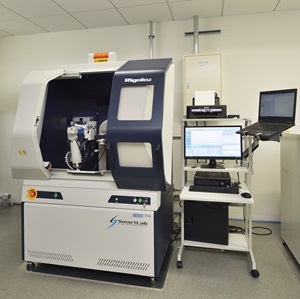

A21:XRD_2 Operand

Maker

Rigaku

Model

SmartLab®

Use for

High-brightness transmission measurement, Operando measurement of laminated batteries, Capillary-sealed powder measurement, PDF analysis (Pair Distribution Function analysis)

Outline

A transmission X-ray diffraction apparatus equipped with a high-brightness, high-energy X-ray source (MoKα, 9 kW), a focusing mirror, and a 2D detector. It can acquire one pattern in approximately 10 minutes in 1D scan mode and supports operando measurements in conjunction with electrochemical equipment. It also includes an attachment for laminated cells. Additionally, it is capable of transmission measurements with samples encapsulated in capillaries and supports obtaining pair distribution functions.

Specification

Type

Rotating anode generator

Maximum rated output

9kW

Optics

Focusing method

Detector

Semiconductor 2D detector

Attachments

Holder for laminated cells, Capillary rotation sample stage

Others

Potentiostat/Galvanostat SP-50 (installed within the main unit)

Noticen

  • Operando measurements of laminated cells are permitted overnight and on weekends. However, please ensure that you conduct a pre-test under the same measurement conditions (such as room temperature, current, voltage, etc.) as those used for the operando measurements to confirm that safe charging and discharging are possible.
  • Coin-type cells are not supported.
