A10：Precision Electrochemical Measurement SystemNanoGREEN Bldg. E-501

Maker	TOYO Corporation(Solartron Analytical) BioLogic Science Instruments
Model	・12608W (1287 Electrochemical Interface + 1260 Electrochemical Interface) ・SP-200 ・VSP-300 (BioLogic Science Instruments)
Use for	AC impedance and DC polarization measurements.

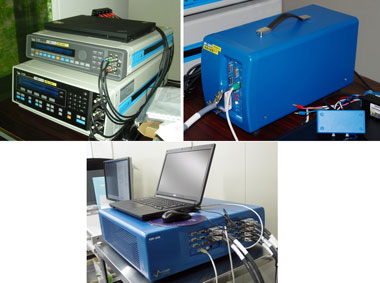

Outline	・12608W manufactured by Solartron Analytical allows automatic measurement of AC impedance and DC Polarization. ・SP-200 is a portable potentiostat/galvanostat. ・VSP-300 is a modular‐unit potentiostat/galvanostat with 6 channels.

Frequency range	10μHz～1MHz
Current Measurement Ranges	200nA～2A
Current Sense Resistor	0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ/100kΩ/1MΩ
Current Sensing Error	0.2% below 1 kHz, 1% below 10 kHz, 2% below 100 kHz
IR Compensation Circuit｜Current Cutoff Time	27μS～1.36mS
IR Compensation Circuit｜duty cycle (%)	0.4％～50％
IR Compensation Circuit｜Positive Feedback Range	0～100％Rs
IR Compensation Circuit｜Real-part Correction	0～100％Rs
IR Compensation Circuit｜I/O	RS423/232　110～9600baud GPIB　Addressable

Current control range	±500mA, ±100mA, ±10mA, ±1mA, ±100μA, ±10μA, ±1μA (7ranges)
Voltage control Ranges	adjustable from ±10V down to ±30mV
Impedance　Frequency range	10μHz to 7MHz
Current Measurement Ranges	±500 mA, ±100 mA, ±10 mA, ±1 mA, ±100 μA, ±10 μA, ±1 μA
Maximum resolution	0.0033% of range
Ultra low current resolution	76pA
External input	2 analog inputs/channel
Slot	16 Slots

Maximum current	±500mA
Control voltage	±10V
Impedance Frequency range	±500mA, ±100mA, ±10mA, ±1mA, ±100μA, ±10μA, ±1μA (7 ranges)
Current Measurement　Ranges	±100pA, ±1nA, ±10nA, ±100nA
Current Measurement Maximum Resolution	0.004% of the range (76aA max)
Voltage measurement Ranges	±10V, ±5V, ±2.5V, ±250mV, ±25mV
Voltage measurement Maximum resolution	< 0.0033% of range
External input	2 analog inputs/channel
