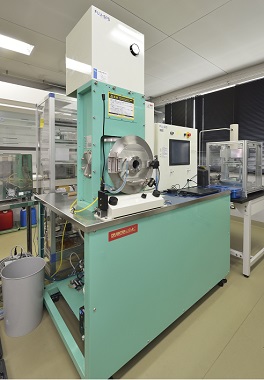

B6：Spark Plasma Sintering (SPS) SystemHigh Pressure Laboratory 215
|
Maker |
Fuji Electronic Industrial |
|---|---|
|
Model |
SPS-612H |
|
Use for |
Pressurized sintering of ceramic powders for all-solid-state batteries |
|
Outline |
An SPS system enabling low-temperature sintering via pressure-assisted electric heating of powders. |
Specification
|
Maximum Pressure |
60 kN |
|---|---|
|
Pressing Stroke |
150 mm |
|
Sample ｈolder Ｄimensions |
Φ70 mm |
|
DC output |
Pulse output 10 V, 1,000 A |
|
Sintering Atmosphere |
Vacuum or Argon (Ar) |
|
Working Temperature |
Up to 1,000 °C |
Notice
- Users should provide their own molds and spacers (materials: graphite, tungsten carbide).
