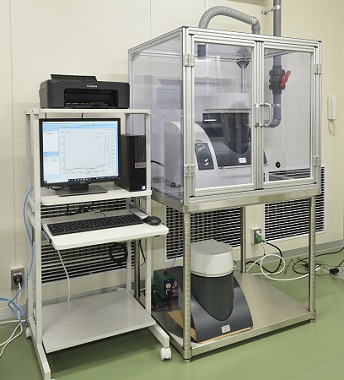

B5：ARCNanoGREEN Bldg. E-504

Maker	NETZSCH
Model	MMC274 Nexus
Use for	Coin-cell level thermal stability evaluation of new battery materials using ARC and coin-cell modules for exothermic behavior, heat absorption/release, gas evolution, and isothermal/temperature ramp testing.
Outline	Multi-mode calorimeter with ARC module for adiabatic heat measurement and coin-cell DSC module.

Specification

ARC module for adiabatic runaway reaction calorimetry	(1) Temperature range: 25 °C – 500 °C (2) Temperature accuracy: ±0.01 K (3) Heating rate: 0 – 2 K/min (4) Pressure range: 0 – 150 bar (5) Pressure accuracy: ±0.01 bar (6) Sample volume: 0.1 – 10 ml (7) Tracking rate: up to 50 K/min (8) Sensitivity tracking rate: 0.002 K/min (varies with temperature range) (9) Heat flux sensitivity: 10 μW (10) Operation modes: step (HWS) / isothermal / constant heating
Coin-cell DSC module	(1) Furnace temperature range: room temperature – 300 °C (2) Heating rate: 0.01 – 5 K/min (3) Temperature resolution: 0.001 K (4) DSC measurement range: up to 370 mW (5) RMS noise: 10 µW (6) Operation modes: temperature hold / constant heating / DSC (7) Cell size: diameter 5 – 30 mm, thickness 1 – 5 mm (8) Standard sample volume: 500 µL (9) Maximum input current: 500 mA

ARC module for adiabatic runaway reaction calorimetry

(1) Temperature range: 25 °C – 500 °C
(2) Temperature accuracy: ±0.01 K
(3) Heating rate: 0 – 2 K/min
(4) Pressure range: 0 – 150 bar
(5) Pressure accuracy: ±0.01 bar
(6) Sample volume: 0.1 – 10 ml
(7) Tracking rate: up to 50 K/min
(8) Sensitivity tracking rate: 0.002 K/min (varies with temperature range)
(9) Heat flux sensitivity: 10 μW
(10) Operation modes: step (HWS) / isothermal / constant heating

Coin-cell DSC module

(1) Furnace temperature range: room temperature – 300 °C
(2) Heating rate: 0.01 – 5 K/min
(3) Temperature resolution: 0.001 K
(4) DSC measurement range: up to 370 mW
(5) RMS noise: 10 µW
(6) Operation modes: temperature hold / constant heating / DSC
(7) Cell size: diameter 5 – 30 mm, thickness 1 – 5 mm
(8) Standard sample volume: 500 µL
(9) Maximum input current: 500 mA
