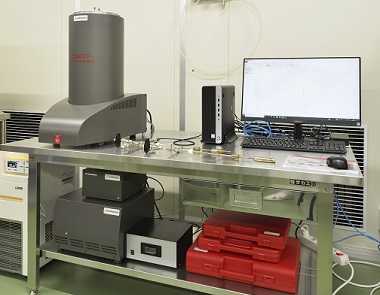

B4：Calvet CalorimeterNanoGREEN Bldg. E-504
|
Maker |
SETARAM |
|---|---|
|
Model |
SETARAM C600 |
|
Use for |
Thermal stability evaluation by calorimetry of cathode/anode materials, with or without electrolyte, under controlled state of charge in a high-pressure vessel. Measurement of specific heat capacity (Cp) of various substances. |
|
Outline |
Calvet-type twin conduction calorimeter with 3D heat flux sensors, enabling high-sensitivity measurements from room temperature to 600 °C. Uses cylindrical sample vessels offering high precision, pressure resistance, and safety. |
Specification
|
Sample vessel material |
Pressure-resistant sample vessel with Inconel lead pipe |
|---|---|
|
Pressure resistance |
Up to 50 MPaA |
|
Internal volume |
4.2ml |
|
Calorimetric sensor |
Thermocouple (thermopile) |
|
Temperature range |
Room temperature to 600 °C |
|
Measurement mode |
Measurement modes: isothermal, ramp (heating) |
|
Heating rate |
0.01～2℃／min |
|
RMS noise |
7μＷ |
|
Calorimetry accuracy |
±1.5% |
