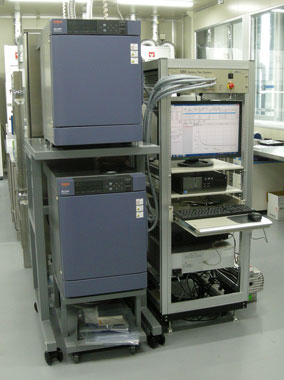

A9：Battery Charge/Discharge SystemNanoGREEN Bldg. E-501
|
Maker |
sai，Espec |
|---|---|
|
Model |
580（16ch）+ thermostatic chamber |
|
Use for |
Evaluation of battery characteristics |
|
Outline |
5 terminal measurement is available. Voltage/current measurements of the cathode and anode are possible with 16 channels. The impedance measurement is possible at 1 kHz. The temperature is also controlled by PC. |
Specification
|
Set Voltage |
-2.000V to +10.000V |
|---|---|
|
Compliance Voltage |
-2.000V to +10.000V |
|
Maximum Current |
±1.000A |
|
Current Ranges |
1A, 100mA, 10mA, 1 mA, 100μA, 10μA (Auto) |
|
Mode |
Constant Current, Voltage or Power (charge, discharge) |
|
Environment |
-60～+150℃ |
Notice
- This equipment is installed in the dry room.
