A24：Environment-controlled SPM NanoGREEN Bldg. E-206-1
|
Maker |
Bruker AXS |
|---|---|
|
Model |
MultiMode 8 + Glove Box |
|
Use for |
Topography (surface profile), nanomechanical property, quantitative conductivity mapping |
|
Outline |

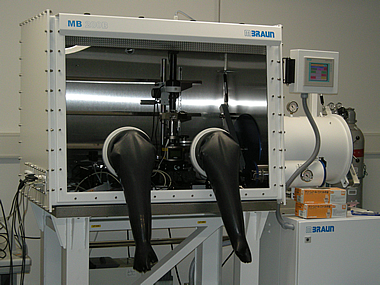

The MultiMode is the world’s most field-proven atomic force microscope (AFM), with a turnkey glove box which can control an environment in which both water and oxygen can be maintained at < 1 ppm. Using this AFM, the surface conditions of the electrode can be evaluated without exposure damage. |
Specification
|
General Imaging Modes |
Peak Force Tapping, Tapping Mode, Contact Mode, PhaseImagingTM, Torsional Resonance Mode, Lateral Force Microscopy, Scanning Tunneling Microscopy |
|---|---|
|
High-speed scan |
256 points x 256 lines less than 1 min. |
|
Scanner |
125 ㎛ x 125 ㎛ XY and 5 ㎛ Z range |
|
Maximum Sample Size |
15㎜ diameter x 5㎜ thick |
Notice
- Please consider collaborative research with NIMS researchers because the precise and complicated operation is necessary.
