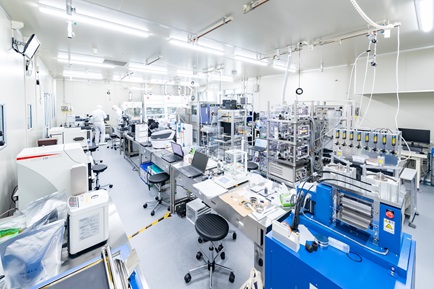

A1：Super-Dry RoomNanoGREEN Bldg. E-501
|
Maker |
Shinryo corporation |
|---|---|
|
Model |
Special |
|
Use for |
Battery cell assembly, evaluation of battery properties, analysis of battery materials. |
|
Outline |
The world's highest level dry air is supplied with a dew point of < -90℃ (Water Content < 0.1ppm). The wide floor space of 80 m2 can accommodate 5 people working. |
Specification
|
Floor Area |
80m2 |
|---|---|
|
Dew point of supply air |
-90℃（≦0.1ppm） |
|
Capacity |
Max.5persons（Room Dew point is ≦-40℃ with 5 persons inside） |
|
Installed instruments |
Cell Assembly Equipment, Viscometer，TG-DTA-MSS, FTIR, Laser Raman Microscope, Ellipsometer, Laser Microscope |
Notice
- Up to five persons at the same time are allowed to keep dry environment.
